分类目录归档:wpt性能优化

预读处理

// FileOverlap.cpp : Defines the entry point for the console application.
//

#include "stdafx.h"
#include <Windows.h>

int cbCount = 0;
BOOL printfDetail = FALSE;
int loop_count = 200;
int successCount = 0;
int failedCount = 0;

#define COMPUTE_TIME(fun)  \
{ \
	DWORD begin = GetTickCount();\
	fun;\
	DWORD end = GetTickCount();\
	printf("\r\n %s: loopCount:%d - cbCount:%d - successCount:%d - timeUsed:%d", #fun, loop_count, cbCount, successCount, end - begin);\
}


void CALLBACK MyFileIOCompletionRoutine(DWORD dwErrorCode,  DWORD dwNumberOfBytesTransfered, LPOVERLAPPED lpOverlapped)
{
	if(printfDetail) {
		printf("\r\ndwErrorCode:%d - dwNumber:%d - offset:%d", dwErrorCode, dwNumberOfBytesTransfered, lpOverlapped->Offset);
	}
	cbCount++;
	if(dwNumberOfBytesTransfered > 0) {
		successCount++;
	}
}

void useReadFileEx(LPCTSTR file)
{
	HANDLE hFile = CreateFile(file, GENERIC_READ,
		FILE_SHARE_READ | FILE_SHARE_WRITE | FILE_SHARE_DELETE, NULL, OPEN_EXISTING, FILE_FLAG_SEQUENTIAL_SCAN | FILE_FLAG_OVERLAPPED, NULL);
	if(hFile == INVALID_HANDLE_VALUE) {
		printf("bad file");
		return;
	}

	OVERLAPPED overlap = {0};
	const DWORD dwStepSize = static_cast<DWORD>(1024 * 1024 * 1);
	const DWORD dwReadSize = dwStepSize - 3072;
	LPVOID buffer = ::VirtualAlloc( NULL, dwStepSize, MEM_COMMIT, PAGE_READWRITE);
	for(int i = 0; i < loop_count; i++)
	{
		overlap.Offset = (i % 1024) * dwStepSize;
		::ReadFileEx(hFile, buffer, dwReadSize, &overlap, MyFileIOCompletionRoutine);
	}
	if(printfDetail){
		printf("\r\nready wait.....");
	}
	while(loop_count >  cbCount){
		SleepEx(0, TRUE);
	}
	::VirtualFree(buffer, 0, MEM_RELEASE);
	::CloseHandle(hFile);
	if(printfDetail){
		printf("\r\nuseReadFileEx:cbCount:%d ", cbCount);
	}
}

void useReadFile(LPCTSTR file)
{
	HANDLE hFile = CreateFile(file, GENERIC_READ,
		FILE_SHARE_READ | FILE_SHARE_WRITE | FILE_SHARE_DELETE, NULL, OPEN_EXISTING, FILE_FLAG_SEQUENTIAL_SCAN | FILE_FLAG_OVERLAPPED, NULL);
	if(hFile == INVALID_HANDLE_VALUE) {
		printf("bad file");
		return;
	}
	DWORD len = 0;
	OVERLAPPED overlap = {0};
	const DWORD dwStepSize = static_cast<DWORD>(1024 * 1024 * 1);
	const DWORD dwReadSize = dwStepSize - 3072;
	LPVOID buffer = ::VirtualAlloc( NULL, dwStepSize, MEM_COMMIT, PAGE_READWRITE);
	for(int i = 0; i < loop_count; i++) {
		overlap.Offset = (i % 1024) * dwStepSize;
		if(!::ReadFile(hFile, buffer, dwReadSize, &len, &overlap)) {
			if(GetLastError() == ERROR_IO_PENDING) {
				GetOverlappedResult(hFile, &overlap, &len, TRUE);
			}
		}
	}
	::VirtualFree(buffer, 0, MEM_RELEASE);
	::CloseHandle(hFile);
}

void useMoreReadFileEx(TCHAR (*files)[MAX_PATH], int count)
{
#if 1
	for(int i = 0; i < count; i++) {
		useReadFileEx(files[i]);
	}
#else
	OVERLAPPED overlap = {0};
	const DWORD dwStepSize = static_cast<DWORD>(1024 * 1024 * 1);
	const DWORD dwReadSize = dwStepSize - 3072;
	LPVOID buffer = ::VirtualAlloc( NULL, dwStepSize, MEM_COMMIT, PAGE_READWRITE);
	for(int j = 0; j < count; j++) {
		HANDLE hFile = CreateFile(files[j], GENERIC_READ,
			FILE_SHARE_READ | FILE_SHARE_WRITE | FILE_SHARE_DELETE, NULL, OPEN_EXISTING, FILE_FLAG_SEQUENTIAL_SCAN | FILE_FLAG_OVERLAPPED, NULL);
		if(hFile == INVALID_HANDLE_VALUE) {
			printf("bad file");
			return;
		}
		for(int i = 0; i < loop_count; i++)
		{
			overlap.Offset = (i % 1024) * dwStepSize;
			::ReadFileEx(hFile, buffer, dwReadSize, &overlap, MyFileIOCompletionRoutine);
		}
	}
	SleepEx(0, TRUE);
#endif
}

void useMoreReadFile(TCHAR (*files)[MAX_PATH], int count)
{
	for(int i = 0; i < count; i++) {
		useReadFile(files[i]);
	}
}

int _tmain(int argc, _TCHAR* argv[])
{
	TCHAR path[MAX_PATH] = _T("c:\\package.zip");
	TCHAR files[10][MAX_PATH];
	int fileCount = 1;
	if(argc < 3) {
		printf("\r\nexample1: 1024 c:\1.zip");
		printf("\r\nexample1: 1024 c:\1.zip 1");
		printf("\r\nexample1: 1024 c:\1.zip 1 2");
		printf("\r\nexample2: 200 c:\cc|1.zip,2.zip");
		printf("\r\nexample2: 200 c:\cc|1.zip,2.zip 1");
		printf("\r\nexample2: 1024 c:\cc|1.zip,2.zip 1 2");
		return 0;
	}
	loop_count = _ttoi(argv[1]);
	_tcscpy(path, argv[2]);
	if(argc >= 3) {
		TCHAR *pmain = _tcstok(path, _T("|"));
		if(pmain != NULL) {
			TCHAR *pfile = _tcstok(NULL,  _T(","));
			int i = 0;
			for(i = 0; i < 10 && pfile != NULL; i++) {
				_stprintf(files[i], _T("%s\\%s"), pmain, pfile);
				pfile = _tcstok(NULL,  _T(","));
			}
			fileCount = i;
		}
	}

	if(argc > 3) {
		printfDetail = argc > 4;
		if(fileCount > 1) {
			COMPUTE_TIME(useMoreReadFileEx(files, fileCount));
		}else{
			COMPUTE_TIME(useReadFileEx(path));
		}
	}else if(argc == 3) {
		if(fileCount > 1) {
			COMPUTE_TIME(useMoreReadFile(files, fileCount));
		}else{
			COMPUTE_TIME(useReadFile(path));
		}
	}
	getchar();
	return 0;
}

etw的信息提取

https://docs.microsoft.com/en-us/windows-hardware/test/wpt/xperf-actions
xperf -tle –i myetw.etl -o providers.csv -a dumper -provider {CA80A0D7-6CA2-4F62-B22D-D0F88D79AE4B}


https://docs.microsoft.com/en-us/windows-hardware/test/weg/instrumenting-your-code-with-etw

Copy your component to the location that was specified in your manifest by the resourceFileName attribute:

xcopy /y MyProviderBinary.exe %temp%

Register the providers:

wevtutil um etwmanifest.man
wetvutil im etwmanifest.man

Verify that the provider is visible:

logman query providers

Your provider name/GUID will appear in the list.
1.Start tracing:
  xperf -start MySession -on MyEventProvider -f MySession.etl
  # In that command line, -start gives the event collection session a name, and -on tells ETW that you want to collect events from your provider in this session. (There can be multiple -on arguments.)
2.Execute your workload.
3.Stop tracing:
  xperf -stop MySession
@echo off
echo "clean session.."
xperf -stop app_session -d app_tmp.etl
xperf -stop -d base_tmp.etl
if exist app_tmp.etl (del app_tmp.etl)
if exist base_tmp.etl (del base_tmp.etl)

echo "open session.."
set now=%date:~0,4%%date:~5,2%%date:~8,2%_%time:~0,2%%time:~3,2%%time:~6,2%
set now=%now: =0%
echo %now%
xperf -start -on Base
xperf -start app_session -on CA80A0D7-6CA2-4F62-B22D-D0F88D79AE4B

echo "请启动prometheus应用。"

timeout 100

xperf -stop app_session -d  app_tmp.etl
xperf -stop -d base_tmp.etl
xperf -merge base_tmp.etl app_tmp.etl prometheus_%now%.etl

xperf -tle -i abc_%now%.etl -o hardfaults_%now%.csv -a hardfault -file -bytes
xperf -tle -i abc_%now%.etl -o time_%now%.csv -a dumper -provider {CA80A0D7-6CA2-4F62-B22D-D0F88D79AE4B}
xperf -tle -i abc_%now%.etl -o pagefaults_%now%.csv -a dumper -provider {3D6FA8D3-FE05-11D0-9DDA-00C04FD7BA7C}
rem start wpa.exe abc_%now%.etl

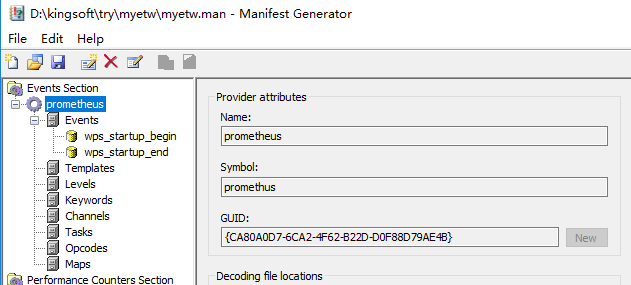

<?xml version="1.0" encoding="UTF-16"?>
<instrumentationManifest xsi:schemaLocation="http://schemas.microsoft.com/win/2004/08/events eventman.xsd" xmlns="http://schemas.microsoft.com/win/2004/08/events" xmlns:win="http://manifests.microsoft.com/win/2004/08/windows/events" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xs="http://www.w3.org/2001/XMLSchema" xmlns:trace="http://schemas.microsoft.com/win/2004/08/events/trace">
	<instrumentation>
		<events>
			<provider name="abc" guid="{CA80A0D7-6CA2-4F62-B22D-D0F88D79AE4B}" symbol="promethus" resourceFileName="res" messageFileName="msg" parameterFileName="param">
				<events>
					<event symbol="wps_startup_begin" value="101" version="0" task="wps_startup">
					</event>
					<event symbol="wps_startup_end" value="102" version="0" task="wps_startup">
					</event>
					<event symbol="et_startup_begin" value="201" version="0" task="et_startup">
					</event>
					<event symbol="et_startup_end" value="202" version="0" task="et_startup">
					</event>
					<event symbol="wpp_startup_begin" value="301" version="0" task="wpp_startup">
					</event>
					<event symbol="wpp_startup_end" value="302" version="0" task="wpp_startup">
					</event>
				</events>
				<tasks>
					<task name="wps_startup" symbol="wps_startup" value="100" eventGUID="{71B0722D-DBC8-4DBE-A10D-04C788F213FC}">
					</task>
					<task name="et_startup" symbol="et_startup" value="200" eventGUID="{57B29ED7-B587-44E4-8A42-D59E9E700583}">
					</task>
					<task name="wpp_startup" symbol="wpp_startup" value="300" eventGUID="{9BDFBC62-FAF6-4F54-9819-23B059E61E79}">
					</task>
				</tasks>
			</provider>
		</events>
	</instrumentation>
</instrumentationManifest>
